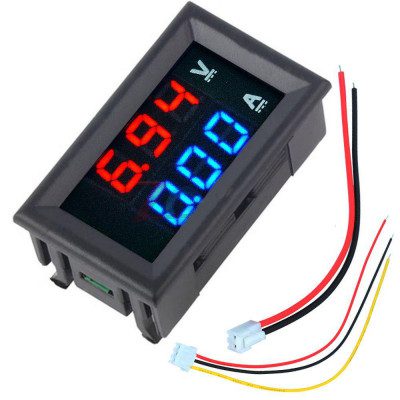

100V 10A Dual LED Voltmeter Ammeter Monitor Panel
Specifications and Features of Volt meter and AMP meter:
- Voltage measuring range: DC 0-100V,
- Current measuring range: DC 0-10A
- Working voltage 4.5 to 30V DC.
- Input current: Less than 20mA
- Dual 4 bit 0.28″ clear LED display – RED for Voltage and Sky Blue for Current Display
- Display Resolution: 0.1V, 0.01A
- Delivery & Return
Delivery
Free Delivery on Orders Above ₹999 FREE
Available for all eligible orders across India.
Normal Shipping
Estimated delivery time: 3-7 working days. Charges: ₹69 for orders below ₹999.
Express Shipping
Estimated delivery time: 2-5 working days. Charges: ₹89 for orders below ₹999.
Â
Returns
Easy Returns
You can raise a return request within 7 days of product delivery. Items must be unused, unaltered, and in their original packaging.
we will appreciate if you can provide us an unboxing video.Replacement Policy
We offer an easy replacement policy for defective or damaged items. However, products that have been soldered or altered after purchase will not be eligible for return or replacement.
Refunds FAST PROCESSING
Refunds will be processed within 3-5 business days after the returned product is received and inspected. Refunds will be issued to the original payment method.
Returns in Store FREE
For a hassle-free return experience, you can also visit our nearest store or service center. Returns will typically be processed within 5-7 business days.
- Ask a Question
₹259 Original price was: ₹259.₹140Current price is: ₹140.

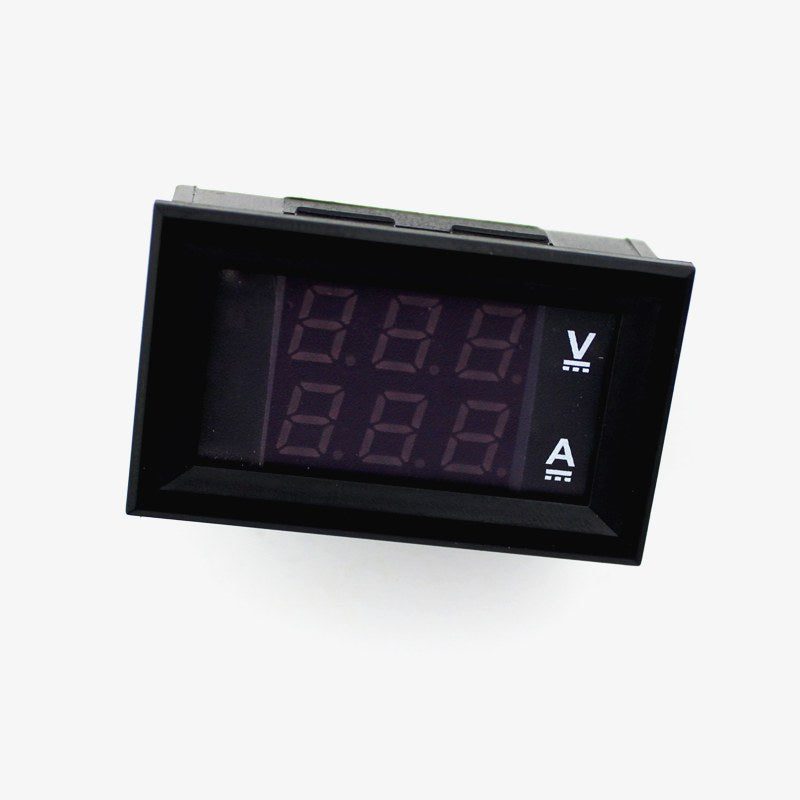

This 100V 10A Dual LED Voltmeter Ammeter Monitor Panel is a simplistic solution that can be used for DC Volt and Amp meter related operations. It has upper and lower groups of LED’s to display measured Voltage and current data where the measuring Voltage range is 0V-100V DC and the Current reading range is 0A to 10A.Â
Since this module comes with an internal sense resistor, no additional resistor is required to be used for current sensing operations.
It can support a wide range of operating voltages from 4.5V to 30VDC. Do not use input voltage more than 30VDC.
Specifications and Features of Volt meter and AMP meter:
- Voltage measuring range: DC 0-100V,
- Current measuring range: DC 0-10A
- Working voltage 4.5 to 30V DC.
- Input current: Less than 20mA
- Dual 4 bit 0.28″ clear LED display – RED for Voltage and Sky Blue for Current Display
- Display Resolution: 0.1V, 0.01A
- Measurement accuracy: ± 1%
Dimension:
Applications:
- Voltage and Current Measurement in different Load applications
- Bench Power supply
- Different type of SMPS where display is required
- Voltmeter applications
- Motor Driving or Electronic Car
- E Vehicle Charging display
Package Contains:
1x 100V 10A Digital Volt Amp meter
1x High current Wire for Voltage Measurement with 2 Pin JST connector on one side
1x 3 pin JST connector for Power input and Voltage measurement.
