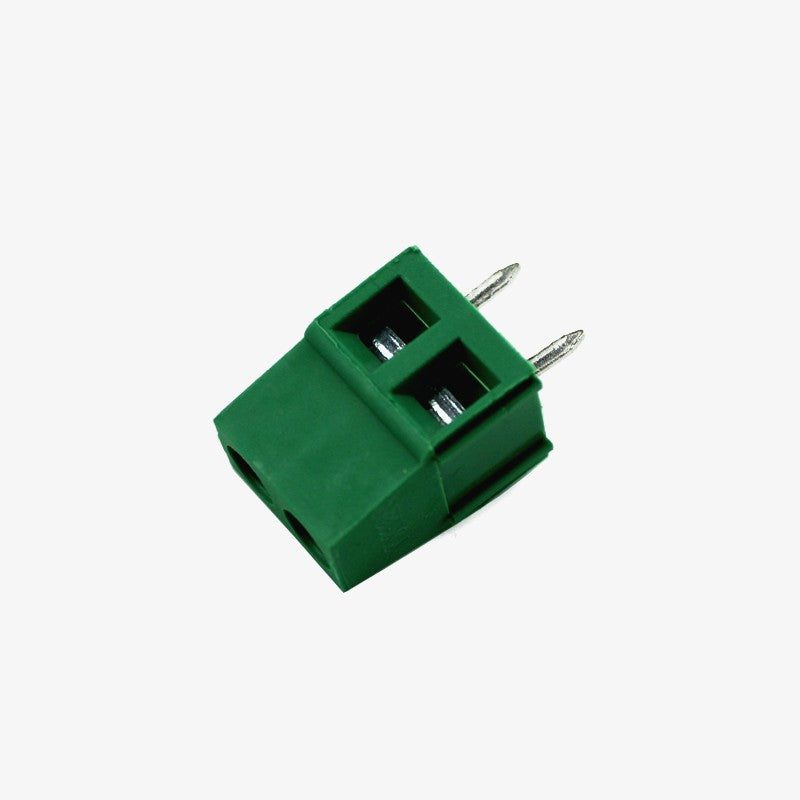

2 Pin PCB Mount Terminal Block (Screw type) – 5mm Pitch
₹15 Original price was: ₹15.₹4Current price is: ₹4. (Inc. GST)
Specifications
- Plastic and Sturdy body
- Screw type terminals
- Two Pins
- Plug and play mountings
- Easy to solder and desolder
Description
2 Pin PCB Mount Terminal Block are used in almost all the electronic appliances as they are highly efficient and make the development and execution of the electronic circuits very easy. You can make one PCB and if tolerances and design is good the PCB will last for years and it can be used for higher amount of currents too but to give and take input and output from the PCB, we need either a berg strip or a terminal block to connect external wires. Hence this 2 Pin PCB Mount Terminal Block (Screw type) with 5mm Pitch is a connector you will need when you want to connect power supplies or applications with higher current like DC motors, locks etc. to the PCB as its 5mm pitch provide enough distance between two legs that it can handle higher quantity of current. You can also use it on the perf-board as its legs are compatible with it too.
Specifications
- Plastic and Sturdy body
- Screw type terminals
- Two Pins
- Plug and play mountings
- Easy to solder and desolder
Package Contents
1×2 Pin PCB Mount Terminal Block (Screw type) – 5mm Pitch
Reviews (0)
Based on 0 reviews
|
|
0% |
|
|
0% |
|
|
0% |
|
|
0% |
|
|
0% |
