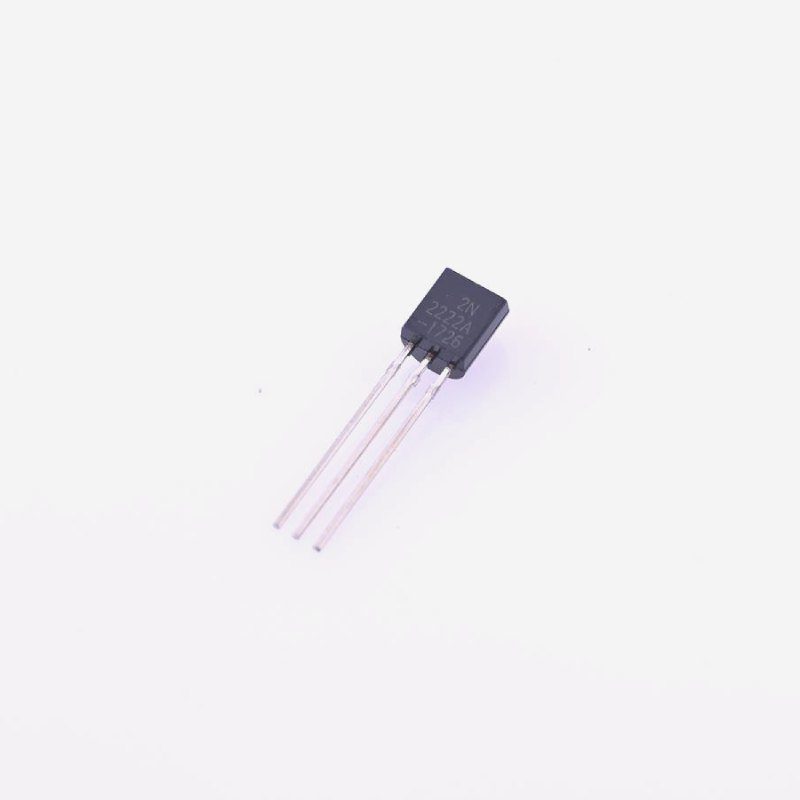

2N2222 NPN Switching Transistor
Specifications
- Bi-Polar high current NPN Transistor
- DC Current Gain (hFE)is 100 to 300
- Continuous Collector current (IC) is 800mA
- Emitter Base Voltage (VBE) is 6V
- Collector-Emitter Voltage (VCE) is 40V
- Base Current (IB) is 5mA maximum
- Available in To-92 Package
- Rise Time 25nSec, Fall Time 60nSec
- Delivery & Return
Delivery
Free Delivery on Orders Above ₹999 FREE
Available for all eligible orders across India.
Normal Shipping
Estimated delivery time: 3-7 working days. Charges: ₹69 for orders below ₹999.
Express Shipping
Estimated delivery time: 2-5 working days. Charges: ₹89 for orders below ₹999.
Returns
Easy Returns
You can raise a return request within 7 days of product delivery. Items must be unused, unaltered, and in their original packaging.
we will appreciate if you can provide us an unboxing video.Replacement Policy
We offer an easy replacement policy for defective or damaged items. However, products that have been soldered or altered after purchase will not be eligible for return or replacement.
Refunds FAST PROCESSING
Refunds will be processed within 3-5 business days after the returned product is received and inspected. Refunds will be issued to the original payment method.
Returns in Store FREE
For a hassle-free return experience, you can also visit our nearest store or service center. Returns will typically be processed within 5-7 business days.
- Ask a Question
₹9 Original price was: ₹9.₹4Current price is: ₹4. (inc. GST)
The 2n2222 npn switching transistor is a common NPN Bipolar Junction Transistor (BJT) is used for general purpose low power amplifying or switching actions. As it is an NPN transistor, so collector and emitter will be left open when no signal is at the base and when a signal is provided to the base terminal, then the emitter and collector will be closed i.e. they will start conducting as BJT will operate in Saturation Region. 2N2222A has a gain value of 110 to 800, this value determines the amplification capacity of the transistor. The maximum amount of current that could flow through the Collector pin is 800mA, hence we cannot connect loads that consume more than 800mA using this transistor. To bias a transistor, we have to supply current to base pin, this current (IB) should be limited to 5mA. It can be used in switching applications with current up to 800mA, in speed control of motors, also it can be used in Darlington Pair.
Â
Specifications
- Bi-Polar high current NPN Transistor
- DC Current Gain (hFE)is 100 to 300
- Continuous Collector current (IC) is 800mA
- Emitter Base Voltage (VBE) is 6V
- Collector-Emitter Voltage (VCE) is 40V
- Base Current (IB) is 5mA maximum
- Available in To-92 Package
- Rise Time 25nSec, Fall Time 60nSec
Â
Additional Resources
Arduino Based Project using 2N2222A BJT
Raspberry Pi based project 2N2222A NPN BJT
Â
Package Contents
1×2N2222A NPN Switching Transistor
