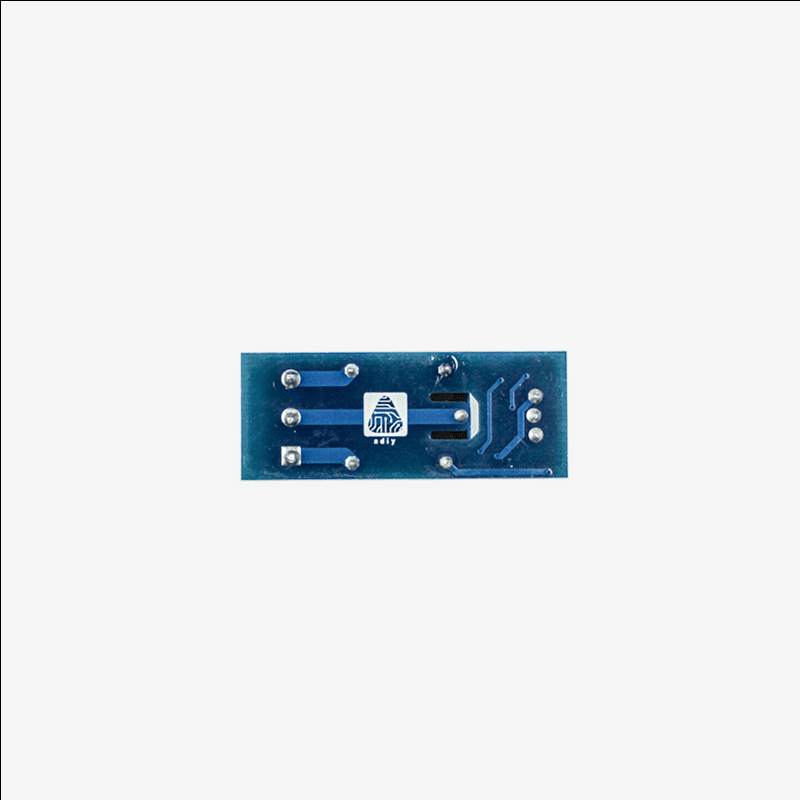

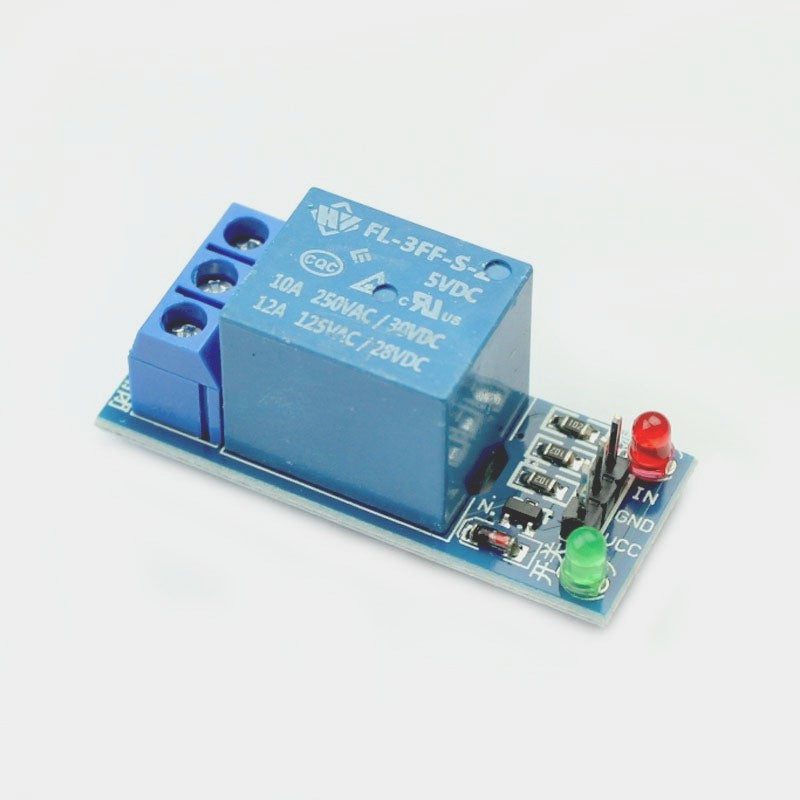

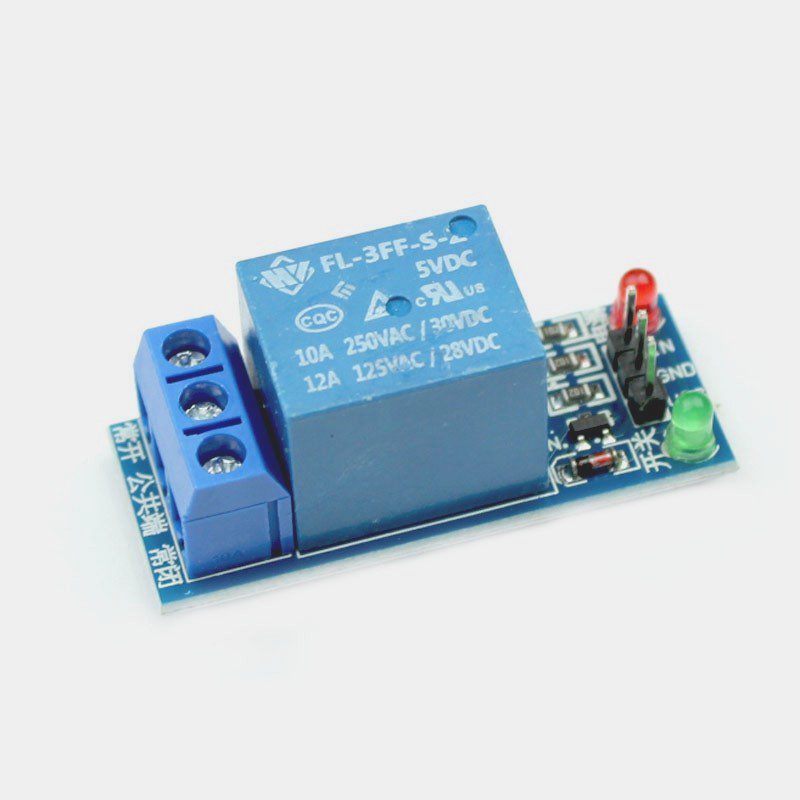

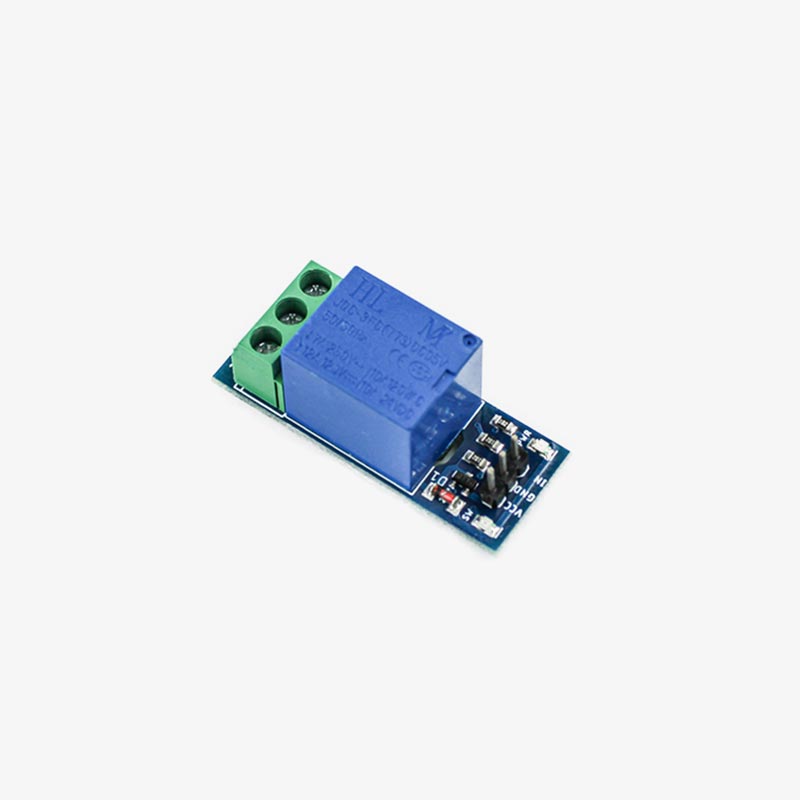

5V 10A Relay Module
Specifications
- Input/Trigger voltage: 5V
- Current consumption: 20mA maximum
- AC load voltage: upto 250V
- DC load voltage: upto 30V
- Load current: upto 10A
- Status Indicator LEDs
- Delivery & Return
Delivery
Free Delivery on Orders Above ₹999 FREE
Available for all eligible orders across India.
Normal Shipping
Estimated delivery time: 3-7 working days. Charges: ₹69 for orders below ₹999.
Express Shipping
Estimated delivery time: 2-5 working days. Charges: ₹89 for orders below ₹999.
Returns
Easy Returns
You can raise a return request within 7 days of product delivery. Items must be unused, unaltered, and in their original packaging.
we will appreciate if you can provide us an unboxing video.Replacement Policy
We offer an easy replacement policy for defective or damaged items. However, products that have been soldered or altered after purchase will not be eligible for return or replacement.
Refunds FAST PROCESSING
Refunds will be processed within 3-5 business days after the returned product is received and inspected. Refunds will be issued to the original payment method.
Returns in Store FREE
For a hassle-free return experience, you can also visit our nearest store or service center. Returns will typically be processed within 5-7 business days.
- Ask a Question
₹46 (inc. GST)
Relays are most commonly used switching devices used in electronics. It can be used to switch high current loads easily unlike transistors which are limited by the maximum current that can flow through them and also can€™t switch AC loads. This 5v 10a relay module arduino can switch both AC and DC loads. It is an Electromagnetic switch, when the coil inside is energized with a small current, it can switch ON or OFF the high current circuit. It has PCB screw terminals to directly connect. They can be used in Home automation to switch ON or OFF the appliances, in Electronic circuits to perform switching operations, in safety circuits to disconnect or connect the heavy loads in case of any dangerous situation, in Automobile applications like turning on windscreen wipers, power windows fuel pump, cooling fan etc.
Specifications
- Input/Trigger voltage: 5V
- Current consumption: 20mA maximum
- AC load voltage: upto 250V
- DC load voltage: upto 30V
- Load current: upto 10A
- Status Indicator LEDs
Product Description
To use this relay module first you have to decide whether you want to connect or disconnect your load when relay is operated. Connect the load across Common and NC terminal if you want to disconnect the load when relay is operated or across Common and NO terminal if you want to connect the load when relay is operated. Power the Module by 5V supply through Vcc and GND pins, as the coil trigger voltage is 5V, you can connect Control Input Pin to any GPIO pin of 5V operating Arduino like UNO or MEGA and control the relay by your program.
Additional Resources
Interfacing Relay with Arduino
Home Automation Circuit using RF Modules
Package Contents
1× 5V 10A Relay Module
“
