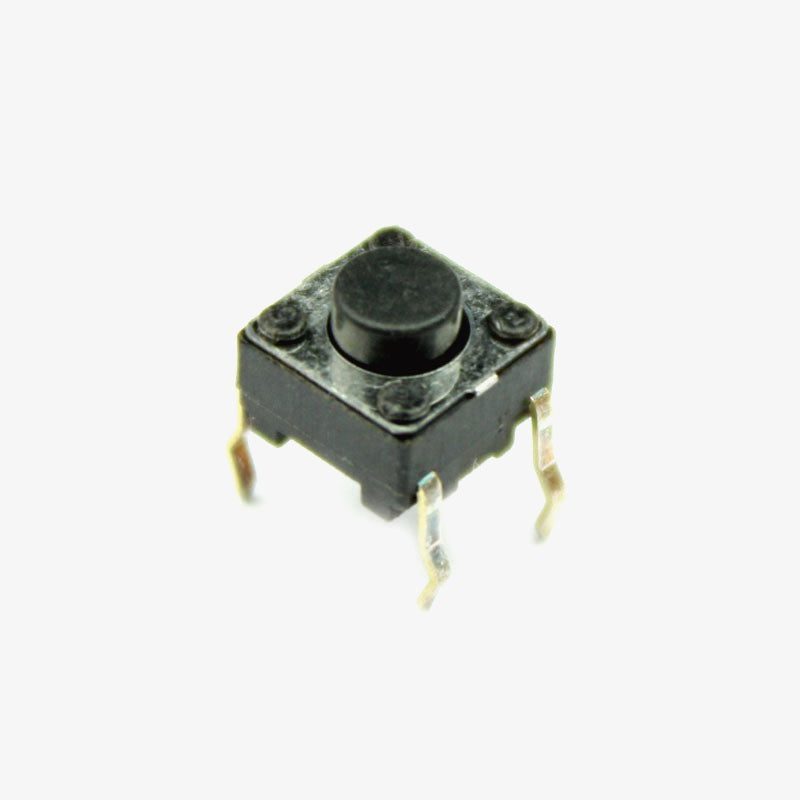

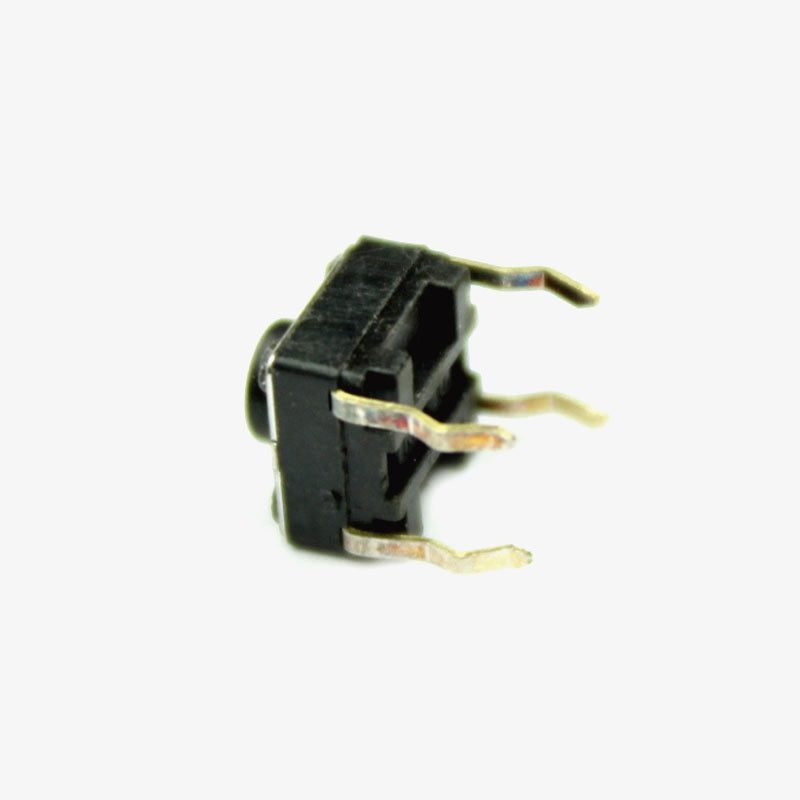

Push Button (4-Pin Tactile Micro Switch)
Specifications:
- Type: normally open
- Rated load: DC 12V 50mA
- Contact resistance: m0.03 Ohm
- Insulation resistance: 100M Ohm
- Temperature: -30 to +70 degree Celsius
- Withstand voltage: AC 250V
Original price was: ₹5.₹3Current price is: ₹3.
This is the most commonly used Push button 4-Pin Tactile Micro Switch having small size and comes in 4 pins. It is in ON while pushed operation and bounces back to OFF on released. By default the circuit is open and when pushed the circuit gets completed.
Specifications:
- Type: normally open
- Rated load: DC 12V 50mA
- Contact resistance: m0.03 Ohm
- Insulation resistance: 100M Ohm
- Temperature: -30 to +70 degree Celsius
- Withstand voltage: AC 250V
Features:
- Prevent flux rise by the insert-molded terminal
- Snap-in mount terminal
- Contact Bounce: MAX 5mS
- Crisp clicking by tactile feedback
Package Includes:
1 x Push Button (4-Pin Tactile Micro Switch)
