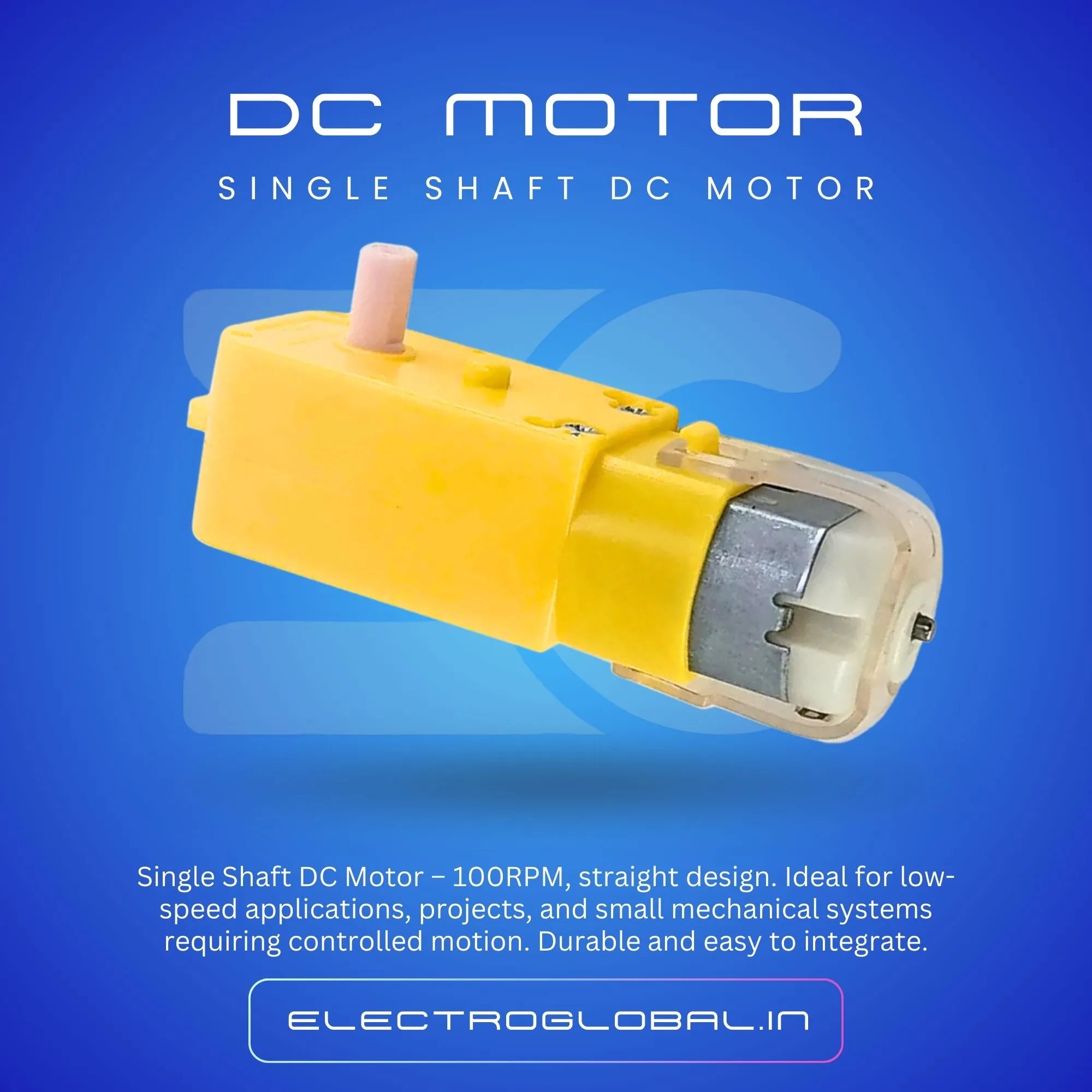

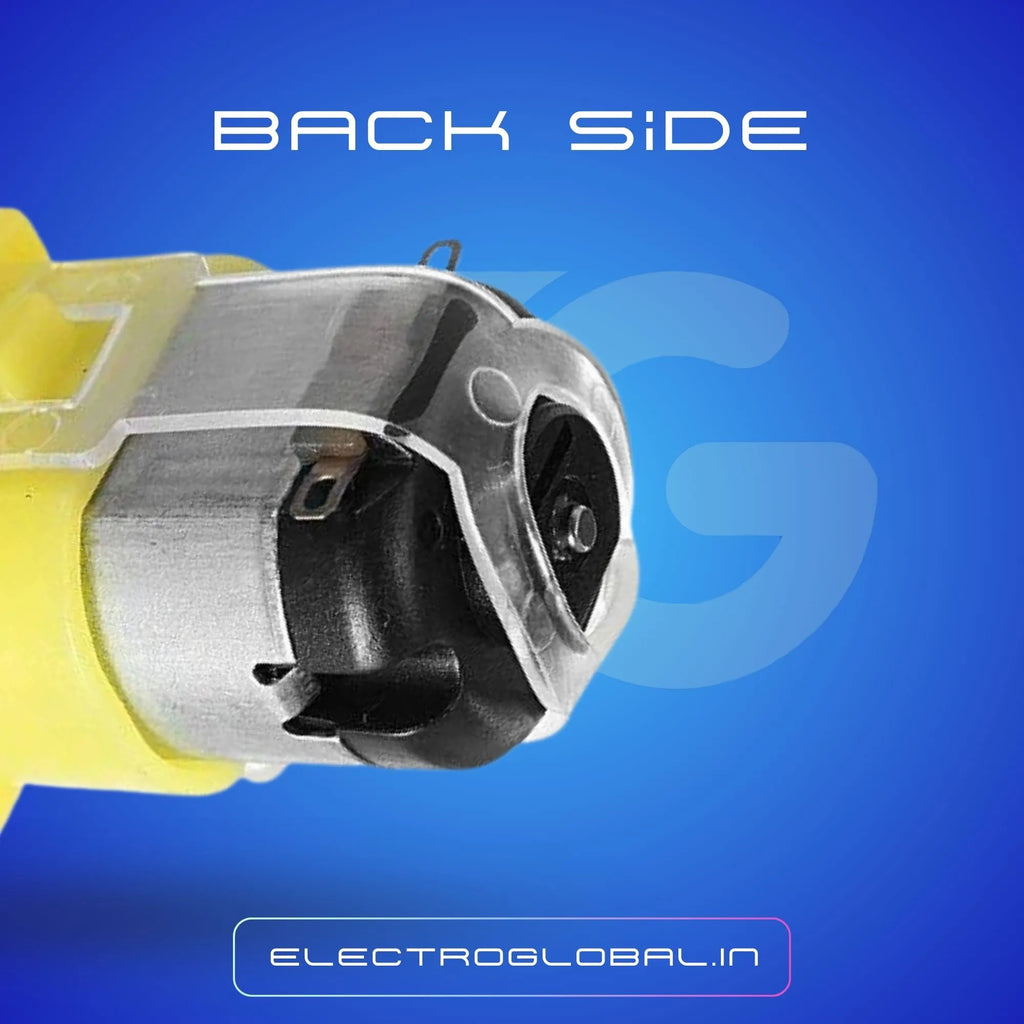

BO Motor Single Shaft with 100RPM (Straight) - DC Motor

BO Motor Single Shaft with 100RPM (Straight) - DC Motor

\n\nThe major benefit of these motors is their ability to provide good torque and rpm at lower operating voltages: the 100 RPM Single Shaft BO Motor - Straight.\n\n\n\nYour application or robot will have an optimum design thanks to a small shaft and coordinating wheels. It may be installed inside a circuit thanks to mounting holes on the body and its small weight. The 69mm Diameter Wheel for Plastic Gear Motors is compatible with this motor.\n\n\n\nIt serves as a substitute for our DC motors with metal gears. It is ideal for creating small and medium robots and has an operating voltage range of 3–12V.\n\n\n\nDIY hobbyists will love the motor. This motor set is the perfect choice for use in a mobile robot car because it is affordable, compact, and simple to install. We frequently employ them in our 2WD platforms.\n\n

Specifications

\n\n

\n\n
• 7 mm for the shaft
\n\n
• Diameter of Shaft: 5.5 mm
\n\n
• 55 x 48 x 23 mm in size.
\n\n
• 3 to 12V operating voltage.
\n\n
• 40-180 mA of current (without a load).
\n\n
• A 100 rpm speed.
\n\n
• Torque produced: 0.35 kg cm.
