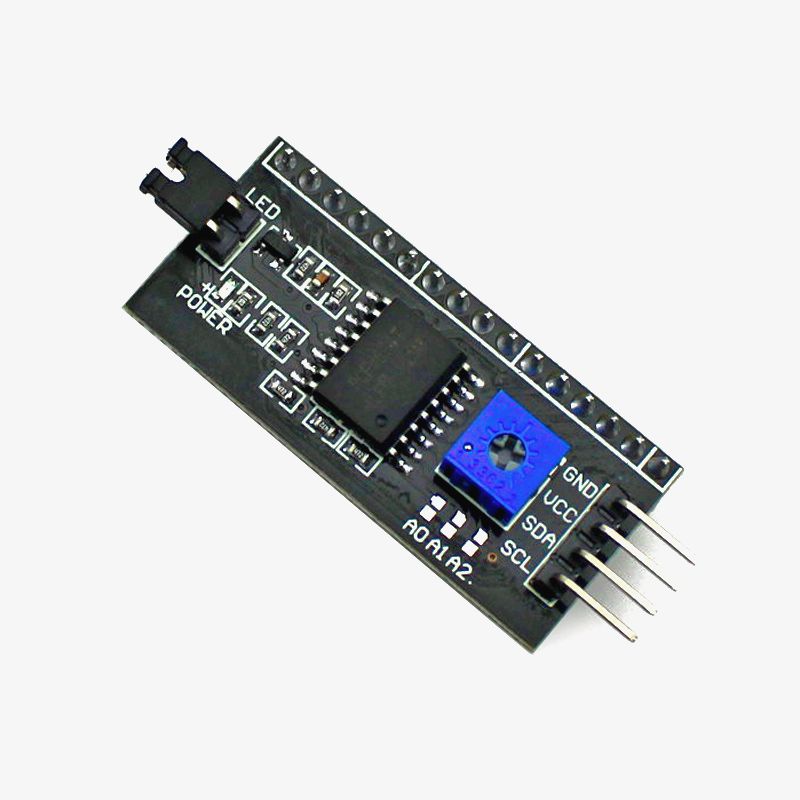

\n\nTo display data, commercially available LCD display modules like the 16x2 and 20x4 LCD displays work great with microcontrollers like the Arduino, Raspberry Pi, PIC, and others. However, a standard 16x2 LCD, even when operating in 4-bit mode, requires about 8 GPIO pins from the microcontroller, which is a lot for projects where GPIO pins are scarce. To reduce the number of pins required to drive the LCD display modules, we therefore need a serial-to-parallel data adapter. The standard 16x2 LCD display is intended to fit directly below this I2C LCD Adapter module. The LCD can then communicate with the controller via this module using the I2C protocol, which only needs two pins from the controller side. The PCF8574 IC then receives the data from I2C and uses it to display it on the LCD screen. It can power robotic projects, a 3D printer, quadcopters, and other devices.\n\n

Specifications

\n\n

\n\n
• 5 V power source
\n\n
• LCD display with serial I2C control using PCF8574
\n\n
• A jumper on the board can be used to enable or disable the LCD display's backlight.
\n\n
• LCD screen contrast can be adjusted using a potentiometer.
\n\n
• 8 modules may be connected to a single I2C bus (address changes require solder jumpers).
