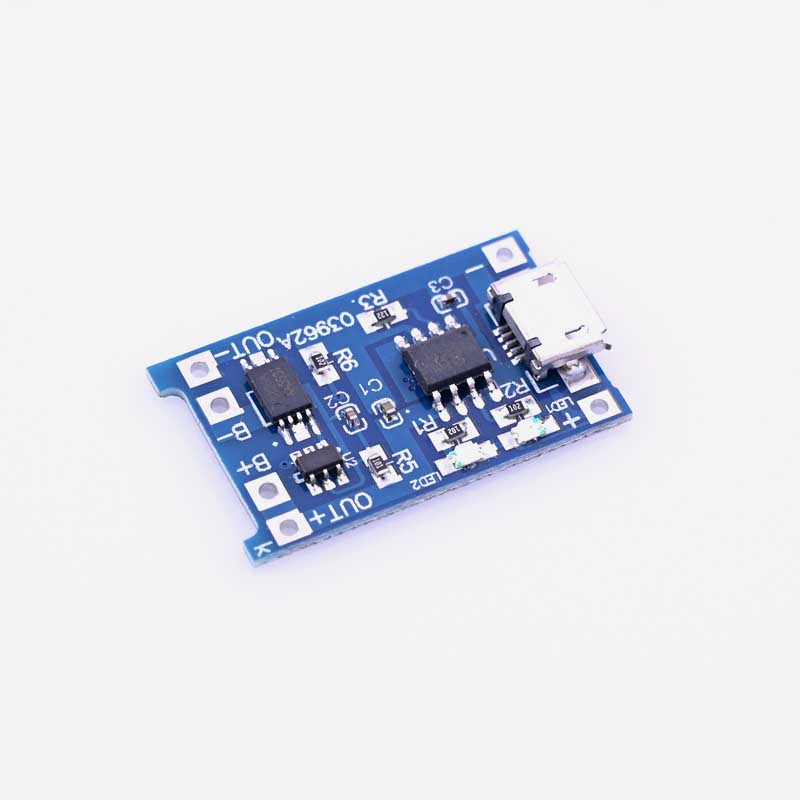

TP4056 - Battery Charging/Protection Module (Micro USB)

Tp4056 battery Micro USB 5V 1A Lithium Battery Charger Board Protection Module is a complete constant-current / constant voltage linear charger for single cell lithium-ion batteries. It's SOP package and low external component count make the TP4056 ideally suitable for portable applications. TP4056 module features a widely available micro USB connector and with a led indicator for state detection.\n\n\n\nTP4056 Module Specifications:\n\n

\n\n
• Input voltage : 4.5V ~ 5.5V
\n\n
• A full charge voltage: 4.2V
\n\n
• Power: 4.2 w
\n\n
• Charging accuracy: 1.5%
\n\n
• Charging indicator: micro LED
\n\n
• Input Interface: Micro USB port
\n\n
• Charging method: linear charge
\n\n
• Operating Temperature: -10 to +85^ºC
