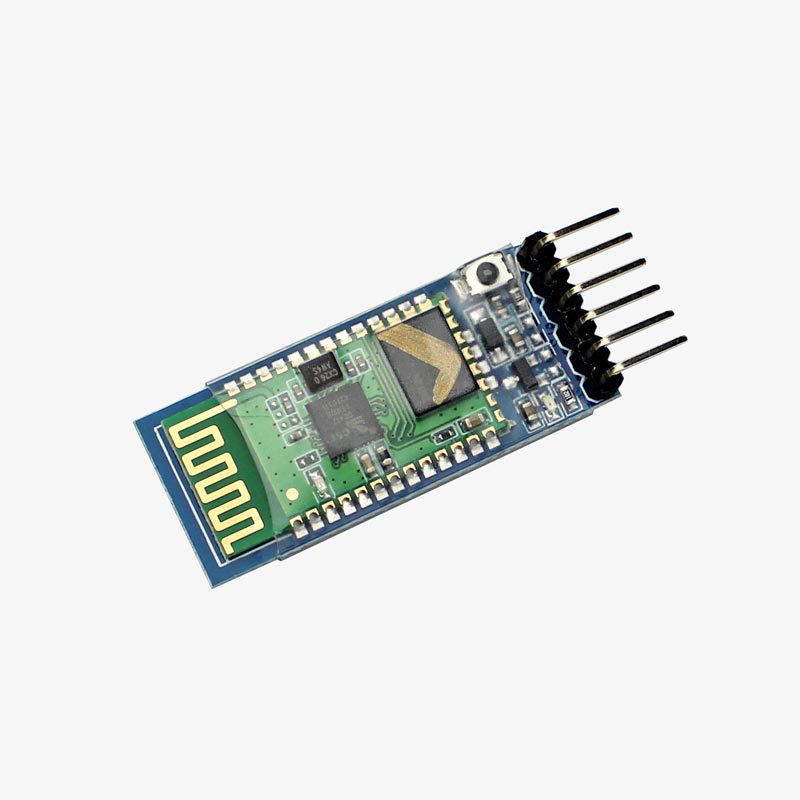

HC-05 Bluetooth Module
₹249
HC-05 Bluetooth Module
The microcontroller and various sensors must be in two-way communication for IoT-enabled projects. There are many ways to do that, including Bluetooth, WiFi, and wired communication. Your project can now communicate wirelessly with any Bluetooth-enabled laptop or mobile device using the Hc 05 bluetooth module. The module uses the USART protocol to communicate at a 9600 baud rate. Applications for it include data logging, wireless robots, wireless sensors, data acquisition, and home automation. It can also be used for communication between two microcontrollers.
Specifications
- Bluetooth serial port profiles Dimensions of the profile: 26.9 x 13 x 2.2 mm
- Protocol for Bluetooth: Bluetooth v2.0+EDR Specification
- ISM band at 2.4GHz, Range
- Gaussian Frequency Shift Keying (GFSK) is the modality.
- -84dBm of sensitivity at 0.1% BER
- Asynchronous: 160 kbps, maximum speed of 2.1 Mbps. Sync: 1 Mbps/1 Mbps
- Power of emission: 4 dBm, Class 2
- Supply voltage: +3.3V, 50mA
- Authentication and encryption for security
- -20 to +75 degrees Celsius for working
