4s bms schematic - Pack of 1

Overview of 4s BMS

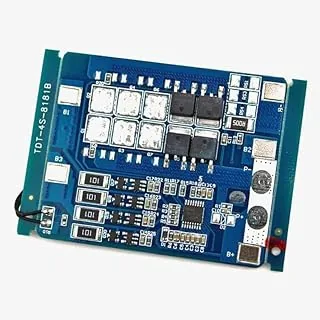

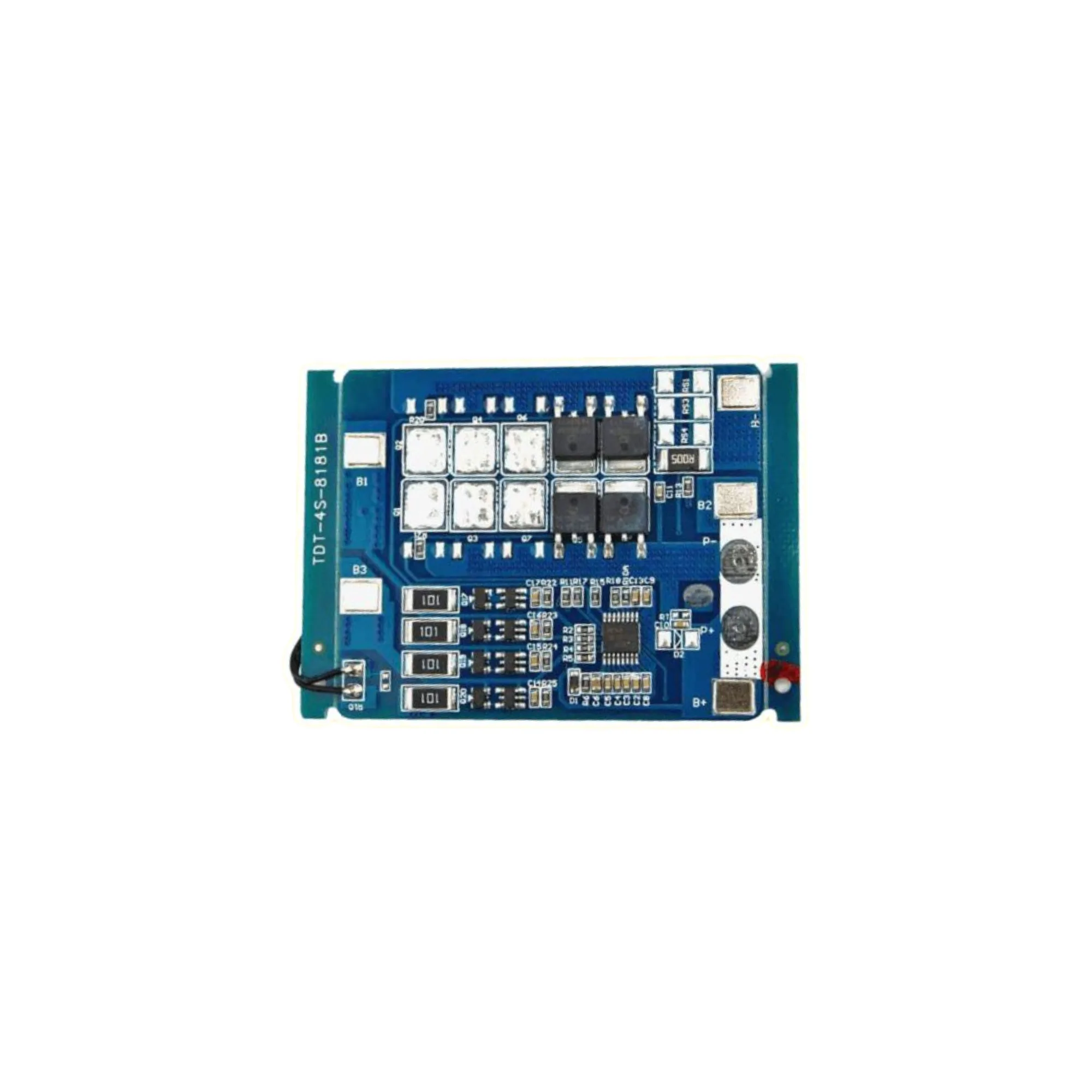

The 4s 10A BMS for LiFePO4 is a crucial component for ensuring the safety and efficiency of your lithium battery systems. This Battery Management System (BMS) is designed specifically for 4-cell configurations, providing a reliable solution for managing the charge and discharge cycles of your batteries. With a nominal voltage of 12.8V, this BMS is perfect for various applications, from electric vehicles to renewable energy storage systems.

Key Features

This BMS comes equipped with several essential features that enhance its functionality:

• Balancing: The built-in balancing feature ensures that each cell in your battery pack is charged evenly, prolonging the overall lifespan of your batteries.
• Current Rating: With a maximum current rating of 10A, this BMS can handle a variety of loads, making it versatile for different projects.
• Protection: The BMS provides over-voltage, under-voltage, and over-current protection, safeguarding your battery pack from potential damage.

Applications

The 4s BMS is suitable for a wide range of applications. Whether you are building a custom battery pack for an electric bike, a solar energy storage system, or any other lithium battery project, this BMS is designed to meet your needs. Its compact design allows for easy integration into various setups, ensuring that you can maximize the performance of your LiFePO4 batteries.

Installation Guide

Installing the 4s BMS is straightforward. Begin by connecting the BMS to your battery cells according to the provided schematic. Ensure that you follow the correct wiring sequence to avoid any issues. Once connected, you can monitor the performance of your battery pack through the BMS, ensuring that it operates safely and efficiently.

Why Choose ElectroGlobal?

At ElectroGlobal, we pride ourselves on providing high-quality electronic components that meet the needs of our customers. Our 4s 10A BMS for LiFePO4 batteries is no exception. With a focus on reliability and performance, you can trust that you are getting a product that will enhance your battery management system. Choose us for your electronic needs and experience the difference in quality and service.
