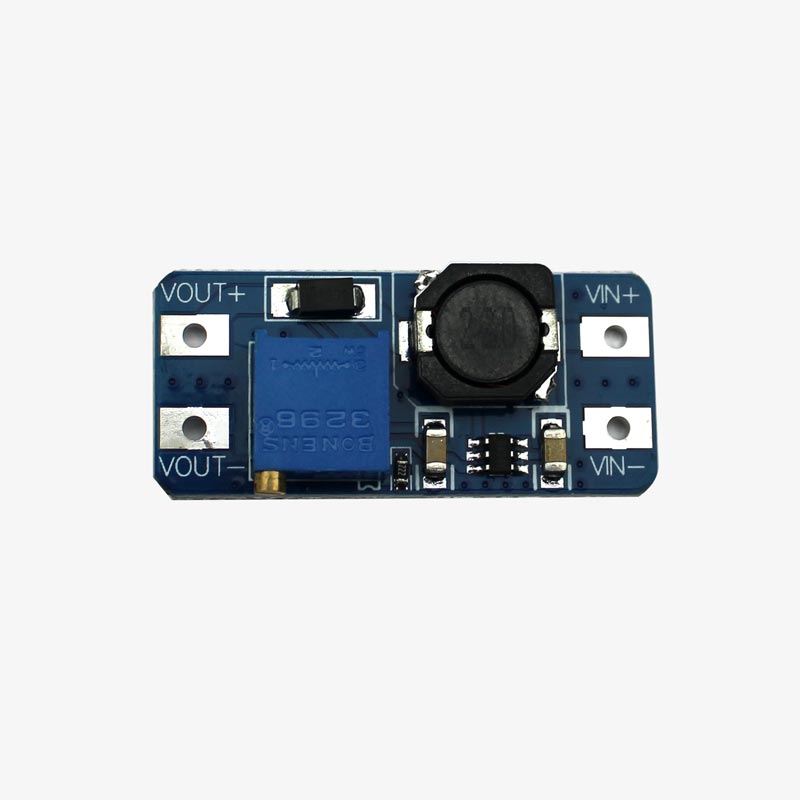

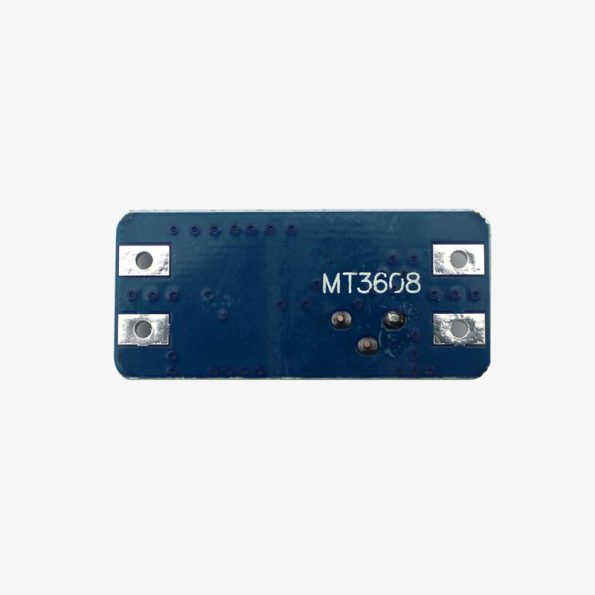

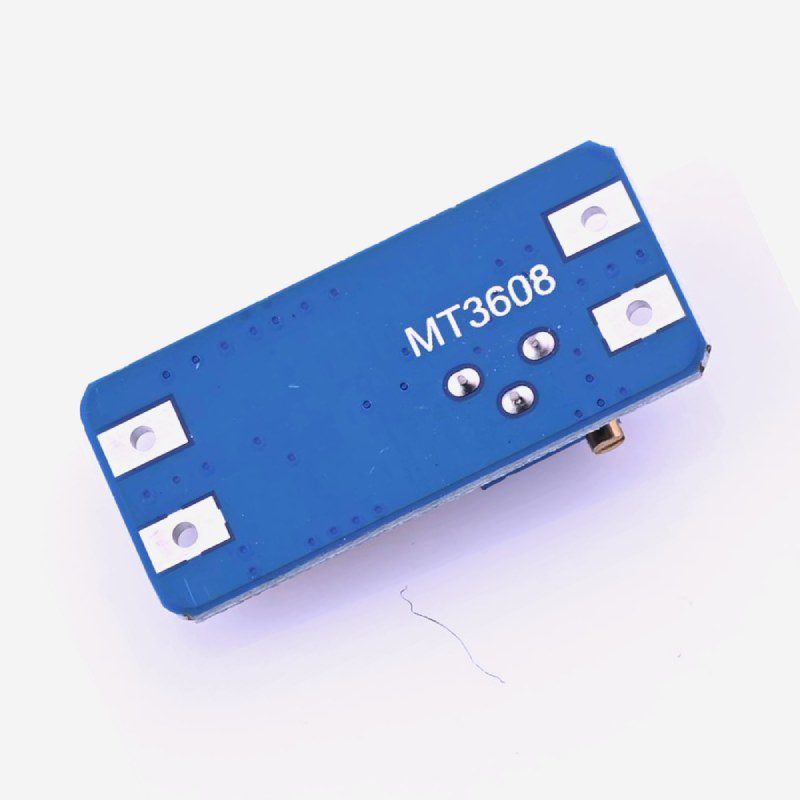

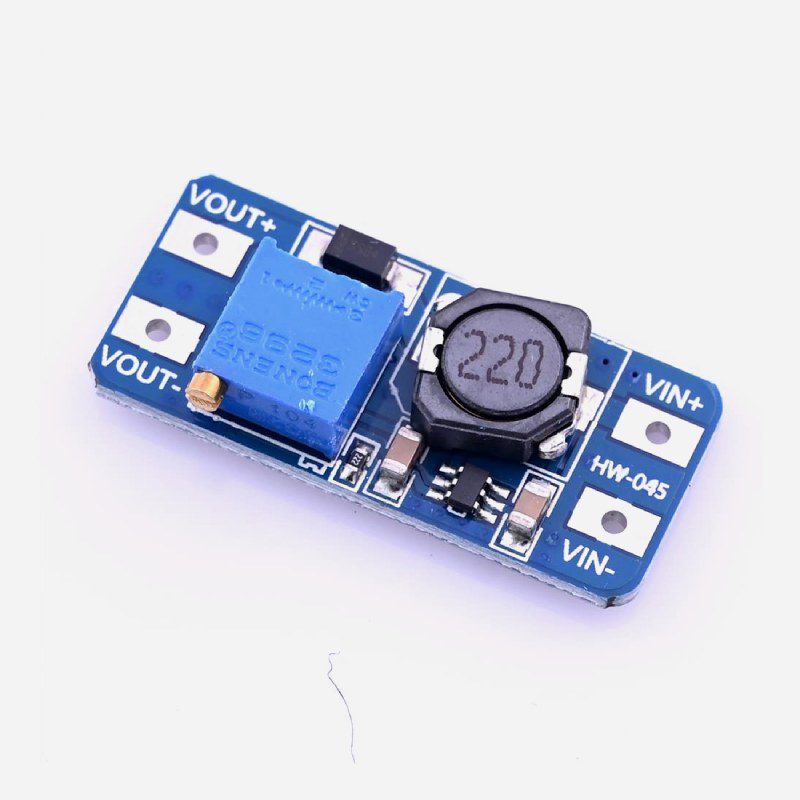

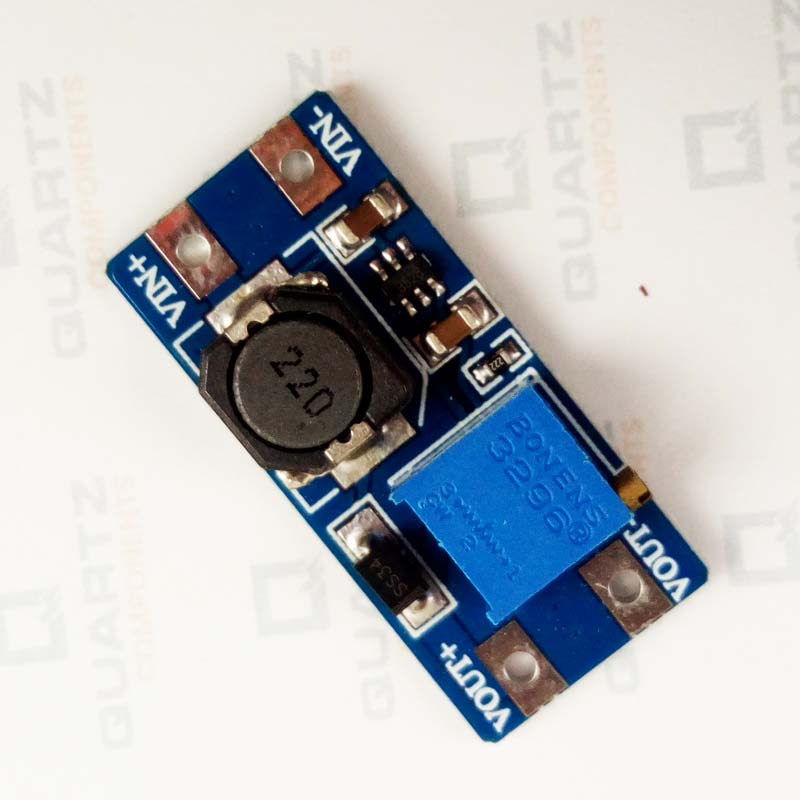

MT3608 2A DC-DC Step Up (Boost) Power Module
Specifications
- Input Voltage Range: 3VDC to 24VDC
- Efficiency upto 93%
- Output Voltage Range: 5VDC to 26 VDC
- Inexpensive and provide high current
- Simple to adjust the output Voltage
- Maximum Output current 2A
- Delivery & Return
Delivery
Free Delivery on Orders Above ₹999 FREE
Available for all eligible orders across India.
Normal Shipping
Estimated delivery time: 3-7 working days. Charges: ₹69 for orders below ₹999.
Express Shipping
Estimated delivery time: 2-5 working days. Charges: ₹89 for orders below ₹999.
Returns
Easy Returns
You can raise a return request within 7 days of product delivery. Items must be unused, unaltered, and in their original packaging.
we will appreciate if you can provide us an unboxing video.Replacement Policy
We offer an easy replacement policy for defective or damaged items. However, products that have been soldered or altered after purchase will not be eligible for return or replacement.
Refunds FAST PROCESSING
Refunds will be processed within 3-5 business days after the returned product is received and inspected. Refunds will be issued to the original payment method.
Returns in Store FREE
For a hassle-free return experience, you can also visit our nearest store or service center. Returns will typically be processed within 5-7 business days.
- Ask a Question
₹106 Original price was: ₹106.₹51Current price is: ₹51. (inc. GST)
Voltage levels in AC can be changed much easier than in case of DC and with much more efficiency, it was one of the deciding factors in war of Currents between Edison and Tesla. Well its not the case now you can change the voltage levels in DC with efficiency as high as 93% with this Mt3608 2a dc dc step up boost power module. The module takes low voltage DC input at higher current and outputs the higher DC voltage with less current. It can provide output ranging from 5V-26V at maximum output current of 2A and at most settings 1A output continuous current is available at most of the voltage levels. It can be used in small DC motors where High voltage is required and you must power them with the battery, changing logic levels, in consumer electronic products etc.
Specifications
- Input Voltage Range: 3VDC to 24VDC
- Efficiency upto 93%
- Output Voltage Range: 5VDC to 26 VDC
- Inexpensive and provide high current
- Simple to adjust the output Voltage
- Maximum Output current 2A
Product Description
To incorporate this module in your system you need to connect the input DC wires to respective input terminals on the board and take the output from the Output terminals. If you need to change the output voltage, you can do that by using the variable resistor knob given on the board.
Package Contents
1×MT3608 2A DC-DC Step Up Power Module
